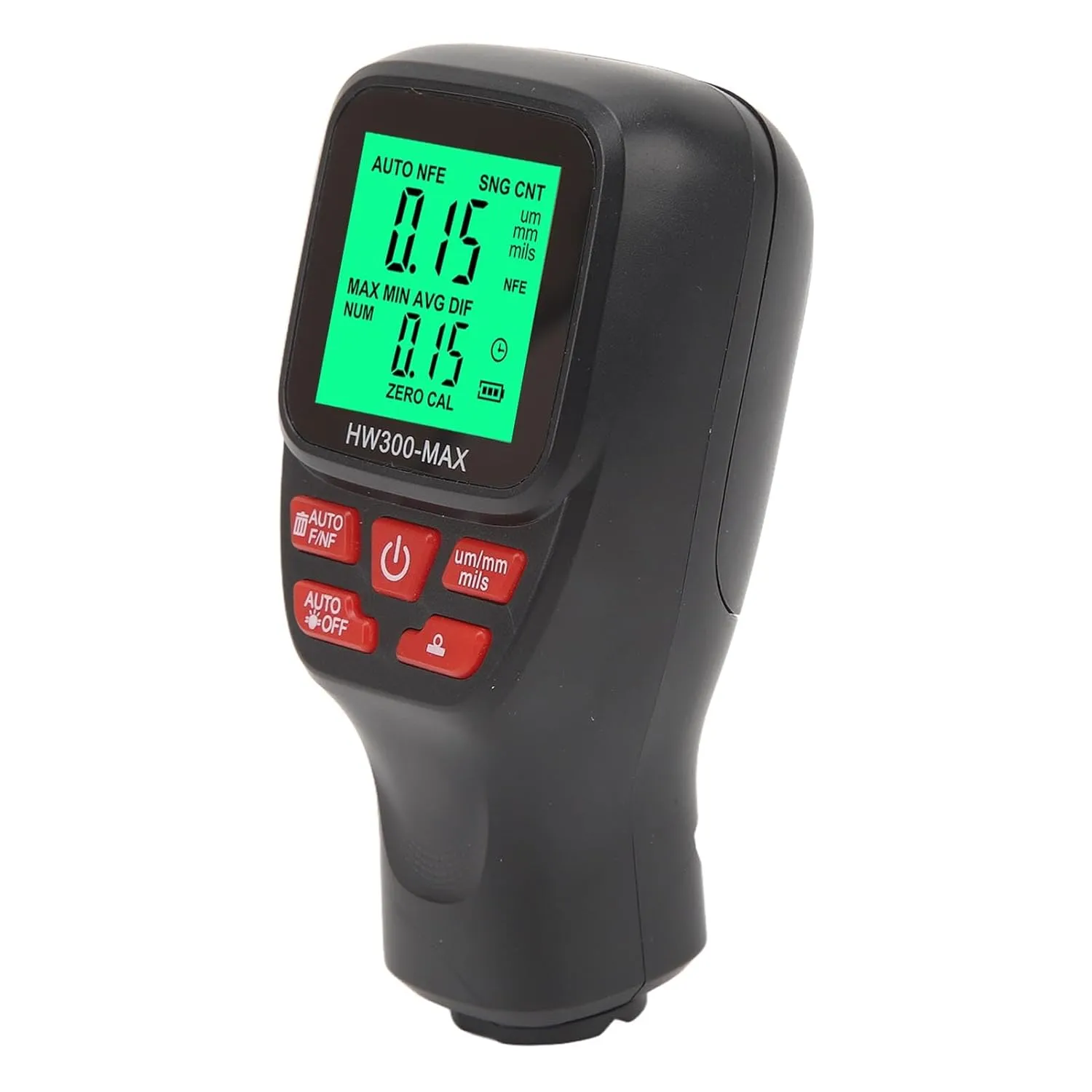

- Auto Power Off and Substrate Detection Function: Coating Thickness Tester,the coating thickness gauge automatically shuts off after a period of inactivity, conserving battery power. In addition, it has an automatic substrate detection function that identifies the type of material being measured.
- Compact Size and High Accuracy:Coating Thickness Tester, this automotive paint coating thickness gauge features a small size that makes it portable and easy to handle, while providing high measurement accuracy. It ensures accurate and reliable results for coating thickness measurements.
- Battery Indicator for Power Monitoring:Coating Thickness Tester, equipped with a battery indicator, this auto paint electroplated metal coating thickness tester allows you to easily monitor the battery status, ensuring uninterrupted use and avoiding sudden power loss during measurements.
- Non-destructive Measurement of Coatings: This car paint film thickness gauge is designed for non-destructive measurement of coatings and paints. It can accurately measure the thickness of various coatings, such as paint, enamel, on steel and paint or anodized coatings on aluminum or copper.
- Wide and Practical Application: The Fe/NFE hand-held paint measuring tool is easy to use and suitable for various industries, including manufacturing, metal processing, chemical and quality inspections. It is an essential tool for surface treatment processes and can be used in both laboratory and outdoor environments.
Specification:
Item Type: Coating Thickness Gauge
Material: ABS
Battery: 2 x 1.5V AAA Battery (battery not included)
Measurement Range: 0-2000um
Measurement Accuracy: ±(3% 1um)
Resolution: 0um-999um (1um)
Minimum Convex Radian: Approx. 5mm / 0.2in
Minimum Concave Radian: Approx. 25mm / 1in
Minimum Measurement Area: Diameter 20mm / 0.8in
Minimum Substrate Thickness: 0.2mm
Maximum Measurement Speed: 2 readings per second
Product Size: Approx. 8.5 x 4 x 3cm / 3.3 x 1.6 x 1.2in
Package List: 1 x Coating Thickness Gauge 6 x Standard Films 1 x Substrate 1 x User Manual
- Date First Available : January 12, 2024
- Manufacturer : Agatige
