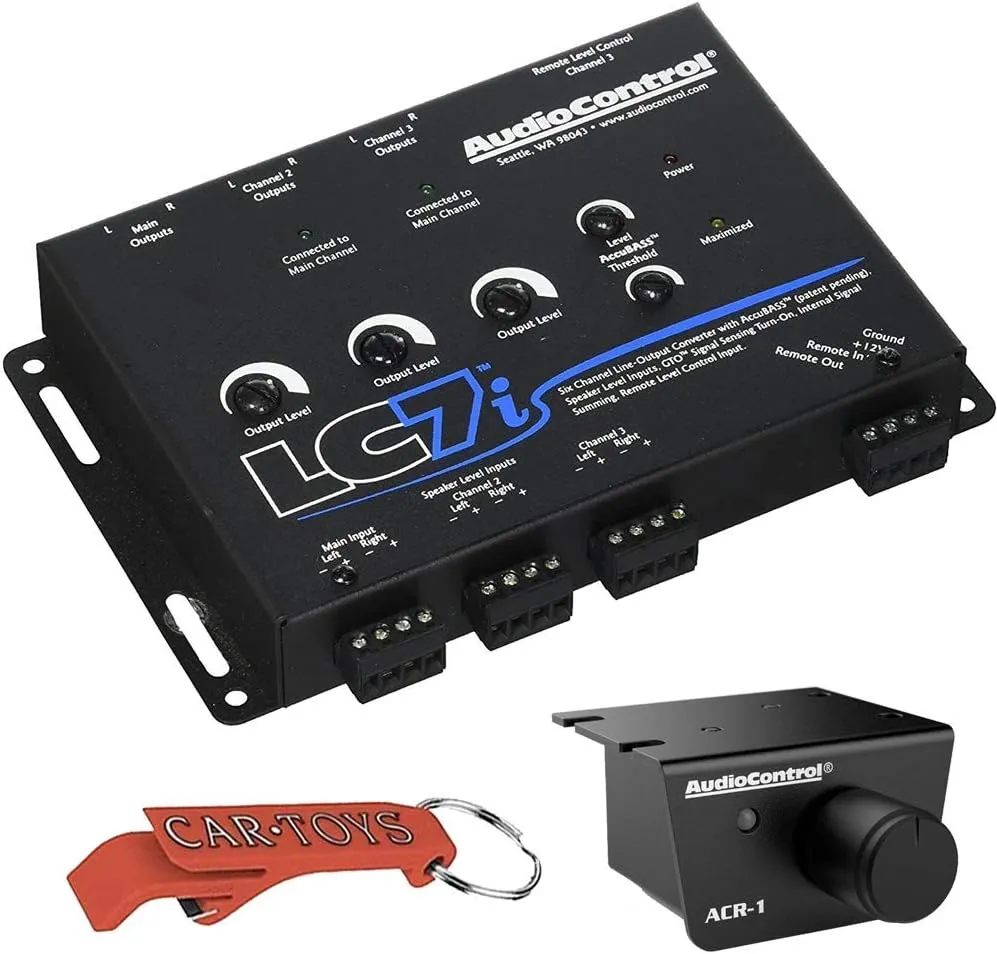

- PACKAGE BUNDLE INCLUDES: 1x AudioControl LC7i Compact 6-Channel Line Output Converter with AccuBASS, 1x AudioControl ACR-1 Dash Remote with 20 Foot Cable and Mounting Enclosure (for AudioControl Processors and Amplifiers).
- LINE OUT CONVERTER: Designed for maximum sound quality and enhanced audio performance, the LC7i incorporates AccuBASS. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl�s unique and exclusive AccuBASS circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.
- DASH REMOTE: Add remote level control for your AudioControl processor or amplifier. This is the replacement remote for the Epicenter. Comes with a 20 foot cable and removable mounting enclosure (for custom dash installations).
Line Out Converter: Six channels of active speaker level inputs – accepts up to 400 watts per channel Patent Pending AccuBASS circuitry Optional ACR-1 Remote allows for user control of the subwoofer level Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers GTO (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input Output level control Compact chassis allowing for ease of installation Speaker Level Inputs: 3 (6 channels) Maximum Input (speaker level): 400W per channel at 4Ω Input Impedance: 20kΩ Preamp Outputs: 3 (6 channels) Maximum Output Level: 8.5Vrms Output Gain: ±12dB Output Impedance: 150Ω Total Harmonic Distortion: 0.01% Frequency Response: 10Hz-22kHz Remote In 12VDC Remote Out (always active when unit is on) Power Supply: High Headroom PWM Switching Current Draw: 350mA Recommended Fuse Rating: 2A Dimensions: 7.5”W x 4.7”D x 1.2”H Weight: 1.5 lbs (0.7 kg) Dash Remote Included In Bundle
- Is Discontinued By Manufacturer : No
- Product Dimensions : 12 x 10 x 6 inches; 4.21 Pounds
- Date First Available : August 23, 2020
- Manufacturer : AudioControl
